Claw notching equipment
The claw notching equipment is a notching tool for Geka’s ironworker machines. This notching tool allows your machine to convert flat bars into claw-shaped bars.
The claw-shaped notching equipment opens the extremes of flat bars transforming them into a claw shape. With a single longitudinal cut at the end of the flat bar you can obtain a claw-shaped way with a separation between the cut areas.
Depending on your machine, this accessory can handle different flat bar thicknesses and widths and cut in different lengths.
The list below compares the maximum claw-shaped notching size capacity for each Geka ironworker machine.
Our wide range of punches and dies also allows you to punch several standard shapes as oblong, square, rectangular or you can also make your own shape and size with our custom punches and dies technical service.
If you would like to acquire a custom punch or die, please contact Geka, our technical service will help you and may be able to design a custom tailor-made solution. You may want to send us a sketch of the idea that you have, including the shape and the size, and our technical service will evaluate the viability of designing it. All of them can be adjusted to the standard machine easily and quickly.
If you have any questions about the claw notching equipment, we will do everything to help you, please contact us.
Claw notching equipment by machine
| MACHINE | A | B | C |
|---|---|---|---|
| Microcrop 36 | 2 23/64″ | 1 3/64″ | 1 37/64″ |

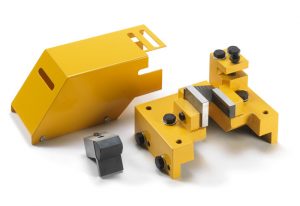

| Minicrop | 3 1/8 | 13/64″ | 1 37/64″ |
| Multicrop 45 | 3 1/8″ | 13/64″ | 1 37/64″ |
| Hydracrop 55 | 2″ | 15/64″ | 1 11/16″ |
| Hydracrop 80 | 2 23/64″ | 5/16″ | 2 3/32″ |
| Hydracrop 110 | 2 23/64″ | 5/16″ | 2 3/32″ |
| Hydracrop 165 | 2 23/64″ | 5/16″ | 5/16″ |

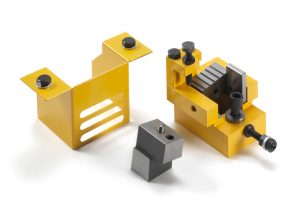

Microcrop Claw-shaped notching equipment

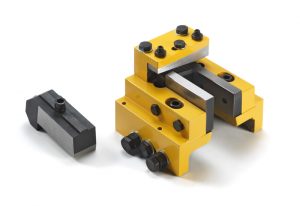

Hydracrop 55 Claw-shaped notching equipment

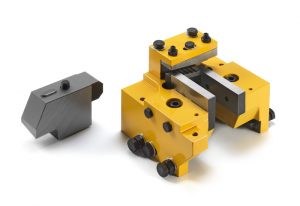

Hydracrop 80-110 Claw-shaped notching equipment
