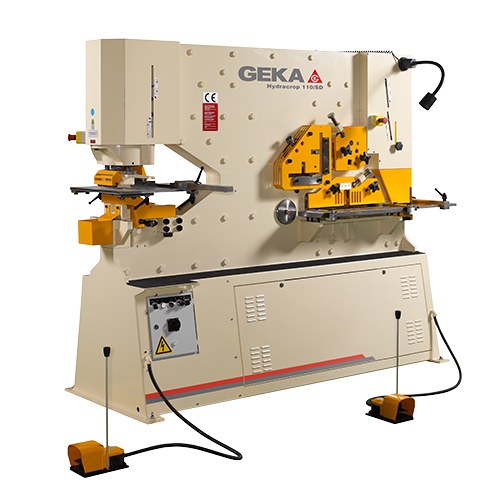

Hydracrop 110/180 Hydraulic Ironworker

The Geka Hydracrop 110/180 is one of the models in Geka’s Hydracrop Series of hydraulic ironworkers. This ironworker machine is highly recommended for the manufacturing tasks of punching and cutting plates. Since it features two cylinders, the machine offers the capability of being worked by two operators at the same time, one at each hydraulic cylinder.

Like the rest of the ironworkers with two hydraulic cylinders for sale at Geka, the Hydracrop 110/180 features five workstations, each equipped to handle different tasks. Different accessories and attachments are also available to be mounted on the machine

Features and specifications of the Geka Hydracrop 110/180

Punching Power120 US Tons
PunchingØ1-1/2″ x 3/4″
Ø1-3/32″ x 1-3/32″
Shearing Power180 US Tons
Shears of Flat Bars and Plates24″ x 5/8″
16″ x 3/4″
Shearing of Angles
(without deformation)
Shearing of Solid Round and Square Bars
(Optional Blades)
Ø 2″ and □ 2″
Rectangular Notching3-1/2″ x 2″ x 1/2″
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

The five workstations included in the Geka Hydracrop 110/180 Ironworker Machine

  • Punching station: the punching station is fitted with an independent cylinder, making an universal workstation capable of being mounted with multiple Geka optional tools and die sets.
  • Station for shearing angles at 90°: thanks to a blade system designed by Geka, this station is capable of distortion-free shearing without any loss of material.
  • Notching station: this station was designed to be able to be equipped with many different Geka accessories or tools. These optional peripherals allow the machine to perform different jobs like triangular notching at 90°, pipe notching, and notching footings.
  • Station for shearing flat bars and plates: thanks to the stability provided by a monoblock blade-holder, a long upper blade may be mounted on the station to obtain optimum shearing results.
  • Cutting station for round and square bars: the station comes equipped with standard blades for cutting round and square bars. However, different blades may also be mounted in order to cut in different shapes.

The machine also features an electric cabinet with an inching selector switch. The cabinet may be easily removed for access to the hydraulic unit.

Hydracrop 110, 2 Cylinders Ironworker with five Workstation video:

Main features of the Geka Hydracrop 110/180

Standard punching station with a gauge table
Flat bar shears with marking for miter cuts and 2 guide
Sections station that may be equipped with blades for cutting round and square bars
Rectangular notching station with a gauge bar
Angle cutting station

Hydracrop main features:

Max Punching ØFlat Bars ShearingBars ShearingAngle cut 45ºAngle cut 90ºNotching
Hydracrop 551-1/2″ x 3/8″12″ x 5/8″
8″ x ¾”
1 5/82 3/4“x2 3/4“x1/44 3/4“x4 3/4“x 3/83/8” thickness
Hydracrop 801 1/16” x 1/2”18″ x 5/8″
12″ x ¾”
3/42 3/4“x2 3/4“x1/45 1/8“x 5 1/8” x 1/21/2″ thickness
Hydracrop 1101 1/16” x 1/2”24″ x 5/8″
16″ x ¾”
2″2 3/4“x2 3/4“x1/46″x 6″ x 1/21/2″ thickness
Hydracrop 1651 1/2” x 1/2”30″ x ¾”
16″ x 11/8
3/82 3/4“x2 3/4“x1/48″x 8″ x 3/45/8″ thickness
Hydracrop 22011/2”x11/2”30″ x ¾”
16″ x 11/8
3/82 3/4“x2 3/4“x1/48″x 8″ x 3/45/8″ thickness
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

CNC Feeders and Positioners for GEKA Ironworkers and Punching Machines.

CNC Positioners and Feeders let you increase the productivity of your ironworker by automatically positioning plates and profiles in punching or shearing stations of our GEKA Ironworkers.
