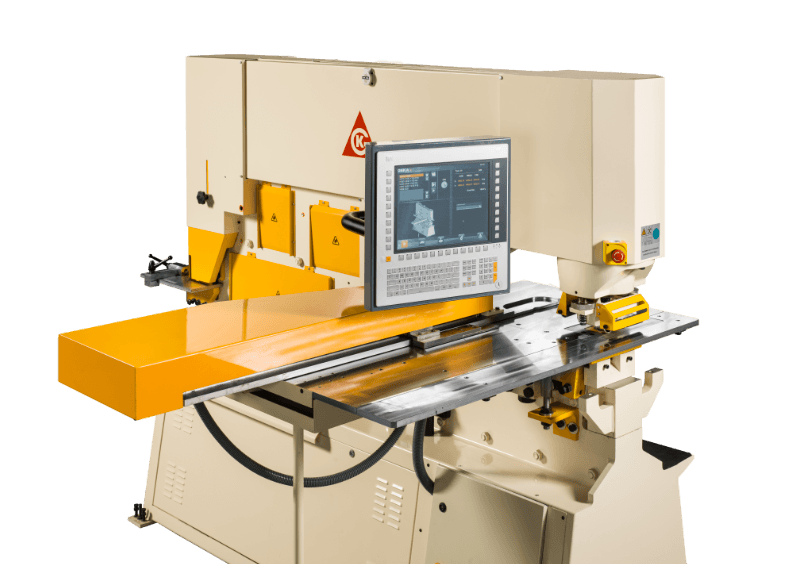

The Semi-Paxy CNC automatic positioner may be mounted onto new or existing Geka ironworkers with a minimum throat size of 20″. It is available as part of an optional package for the two-cylinder hydraulic ironworkers in Geka’s Hydracrop Series or for the punching machines in the Puma Series.
This CNC positioner is equipped with programmable stops along the X- and Y-Axis.
Versions of the Semi-Paxy CNC Automatic Positioner:
X 1000: Accommodates material with a maximum length of 40″
X Plus: Accommodates extension devices for longer material: 78 3/4″, 118 1/8″, 157 1/2″, 196 7/8″, and 236 1/4″
![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-semipaxy-positioner-plates-punching-solution.png)
Features and specifications for the Semi-Paxy CNC Automatic Positioner
Basic features:
- Support chassis
- Two servo motor-driven positioning carriages
- Touch screen
- Conveyor assembly consisting of independent servo drives along each axis, spindle and encoder units
Maximum Widths according to Model:
- HYDRACROP or PUMA (20″ throat) = 15 3/4″ Y Gauging.
- HYDRACROP Models 110SD and 165 SD = 20″Y Gauging.
- PUMA (30″ throat) = 25 5/8″ Y Gauging.
Semipaxy CNC positioner with extended table video:
Features | Semi-Paxy CNC AUTOMATIC POSITIONER |
Rate of Motion (X-Axis) | 0-470″/min |
Rate of Motion (Y-Axis) | 0-470″/min |
Repeatability | +/- .003″ |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Standard operation steps:
- Program the coordinates of each position (absolute or by increments).
- Run the application (sets the automated stops for the first position).
- Place material securely against the stops and press the punching pedal.
- Once the cycle is complete, the automated stops reposition themselves for the next programmed location.
- Repeat the sequence until the end of the program.
Main Features of Semi-Paxy CNC Automatic Positioner
![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-positioner-semipaxy-table-lenght.jpg)

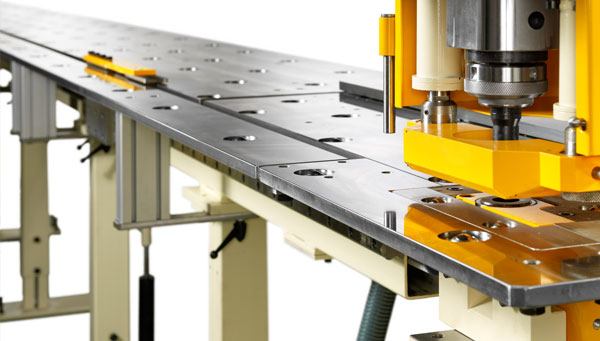

MOTION-ENHANCING FEATURES
Integrated trackballs along the table top permit convenient positioning of material.
Spring-loaded trackballs equipment.
![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-positioner-semipaxy-triple-punching-head.jpg)

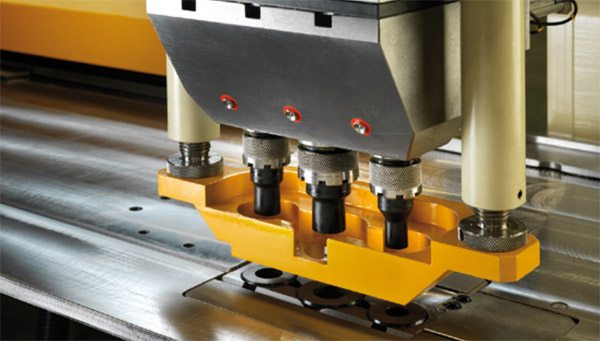

TRIPLE-PUNCHING HEAD
Three on-demand, programmable punches. Diameters up to 1 9/16″. Punching is accomplished by means of forcible strokes or blows. Excellent for operations requiring identical perforations with varying diameters.![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-positioner-semipaxy-control-pc.jpg)

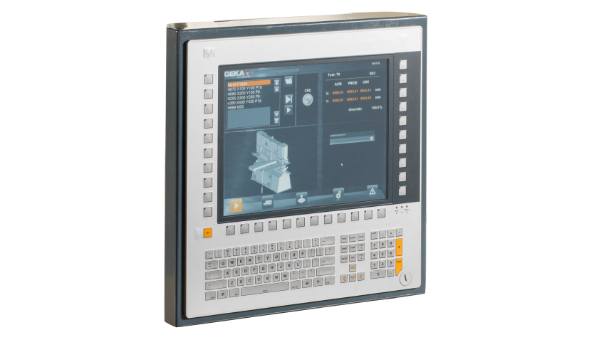

PC-CONTROL
Standard, color touch screen monitor and keyboard. User-friendly graphic interfaces and programming. Importing of .dxf and .dstv format files. Options: 5″ and 7″ screens.Services for your Semipaxy CNC Positioner for Punching Station
