CNC Line for drilling, tapping, milling, and scribing Beams, Tubes, Flat Bars and Angles.
Geka’s Sigma 110 is a CNC solution for drilling, tapping, milling, and scribing beams, angles, U-profiles, tubes, and flat bars with heights of up to 39 3/8″. An optional rotation system is also available to be mounted on the Sigma 110, which allows the CNC line to flip profiles without using a crane.
This CNC solution can drill up to 20 H.P., 3,000 RPM, and an automatic 5-tool changer.
Features and specifications for the Sigma 110 CNC Lines
FEATURES | SIGMA 110 |
---|---|
Maximum working height | 39-3/8″ |
Maximum length of profiles | 472″ |
Type of profiles | Beams, Angles, Channels, Square Tubes, Rectangular Tubes, and Plates |
Operations | Drilling, Tapping, Milling, Scribing and Marking |
Spindle power | 20(peak)/14.75 Nominal Hp |
Number of tools | 5 |
Maximum diameter | 1-9/16″ |
Tool holder | SK40 / ISO 40 |
Profile rotating system | Yes |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Peripherals Available for the Sigma 110:
- Beams rotating system.
- Line Pro Software.
SIGMA 110 CNC Line for Beams video:
Main Features of the Sigma 110 CNC Line for Beams
![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-line-beams-sigma-drilling-head.jpg)

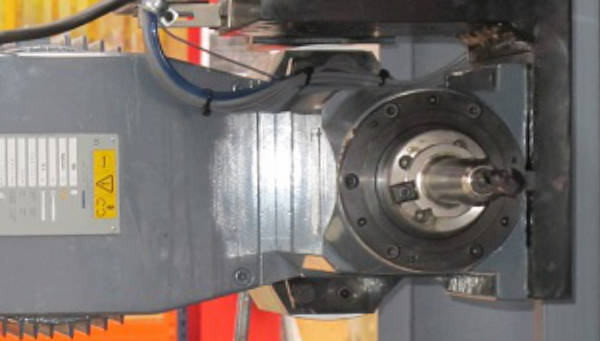

DRILLING UNIT.
Powerful and reliable drilling head. 20 HP peak power. Extra strong double column guided movement. Spindle and rack and pinion X axis travelling. Ultra fast X axis acceleration.![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-line-sigma-hold-down-beam.jpg)

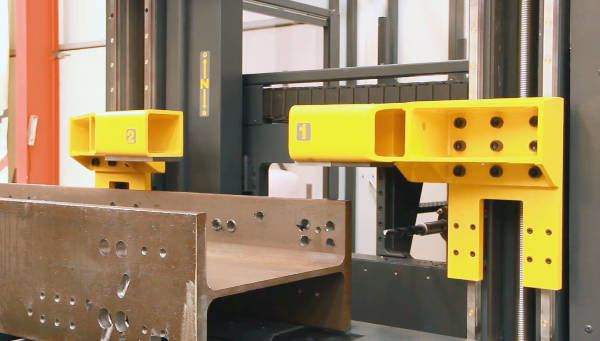

HOLD DOWN.
The profile is clamped to the table by means of a vertical hold-down. Each hold-down is guided by 2 ridged linear guides.![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-line-beams-sigma-tool-change.jpg)

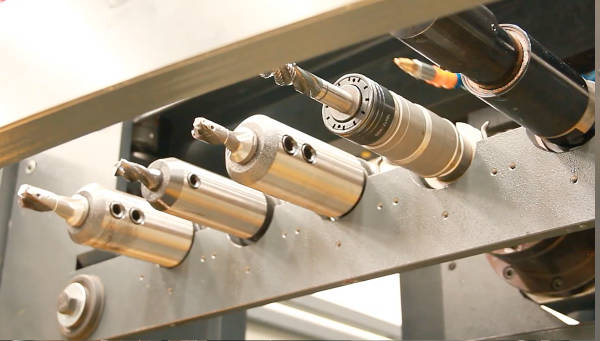

TOOL CHANGER.
5 Tools. Internal lubrication system.![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-pc-control.jpg)
PC-CONTROL.
Windows based PC control. Touch screen. Remote assistance over the internet. USB Port.Services for your SIGMA Beams Processing System CNC Line
