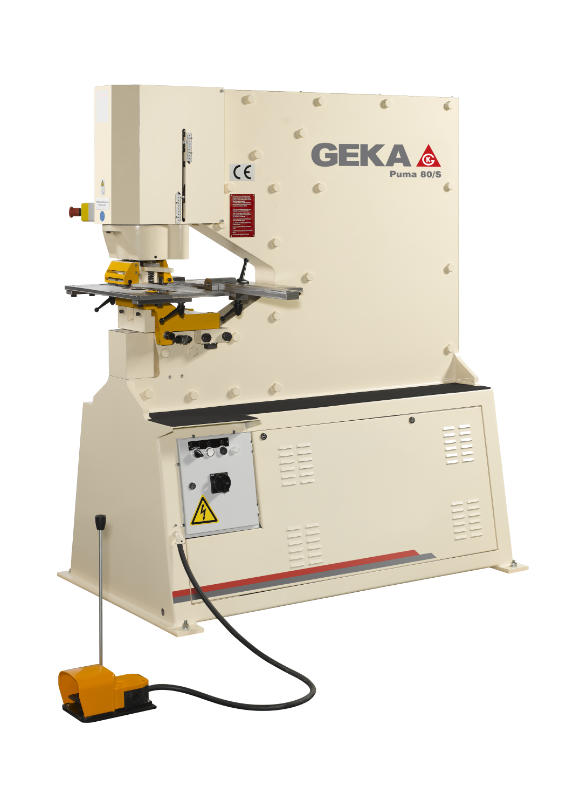

Puma 80 Hydraulic Punching Machine
The Puma 80 is the second option in Geka’s Puma Series of hydraulic punching machines, after the Puma 55. The series of Geka Puma punching machines feature reliable ironworkers for all of your punching needs, guaranteed by Geka’s track record of innovation in design and engineering for over 100 years.
The Puma 80 model packs a punching power of 88 US tons and comes in two different versions—the S and SD—with throat depths of 20” and 29 1⁄2“, respectively, that you can choose from according to your needs.
The Puma 80 punching machine includes the following features
• A guide cylinder
• A technically dimensioned frame
• A strong and accurate shaft system to avoid distortions
• Guided punch centering
• Safety protection
• Quick-change punch-holder stripper for Geka tools
• Optimum operation speed
Specifications for the Geka Puma 80 ironworker
| HYDRAULIC PUNCHING MACHINES: | PUMA-80 | ||
| PUNCHING | |||
| Punching power | US Tons | 88 | |
| Maximum capacity | Ø | 1-1/2″ x 9/16″ | |
| Throat Depths | S | in | 20″ |
| SD | in | 29-1/2″ | |
| PUNCHING OF SECTIONS WITH GOOSENECK DIE HOLDER | |||
| I on the leg | in | 4″ to 12″ | |
| I on the web | in | 4″ to 19-5/8″ | |
| U on the leg | in | 4″ to 12″ | |
| U on the web | in | 4-3/4″ to 14-7/8″ | |
| GENERAL FEATURES | |||
| Motor power | H.P. | 12 | |
| Strokes per minute based on 3/4″ Travel of Punching Cylinder | 40 | ||
| Maximum stroke | in | 2-3/4″ | |
| Working height | S/SD | in | 43″/ 47″ |
| Net weight | S/SD | Lbs | 2,415 / 4,665 |
| Gross weight | S/SD | Lbs | 4,245 / 5,180 |
| Volume | S/SD | Ft3 | 160″ / 207-1/4″ |
| Dimensions with Seaworthy Packaging | S | in | 67″ x 51″ x 81″ |
| SD | in | 83″ x 51″ x 85″ | |
| OPTIONAL EQUIPMENT | |||
| Oversize Diameters Punching | Ø | 4″ x 1/4″ |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
A number of optional and standard accessories are also available for the Geka Puma 80, allowing it to perform different tasks. Among these you may find:
• 4” or 6” oversize punching attachment
• Punch gauging table
• Semi-paxy X-Y positioning table system
