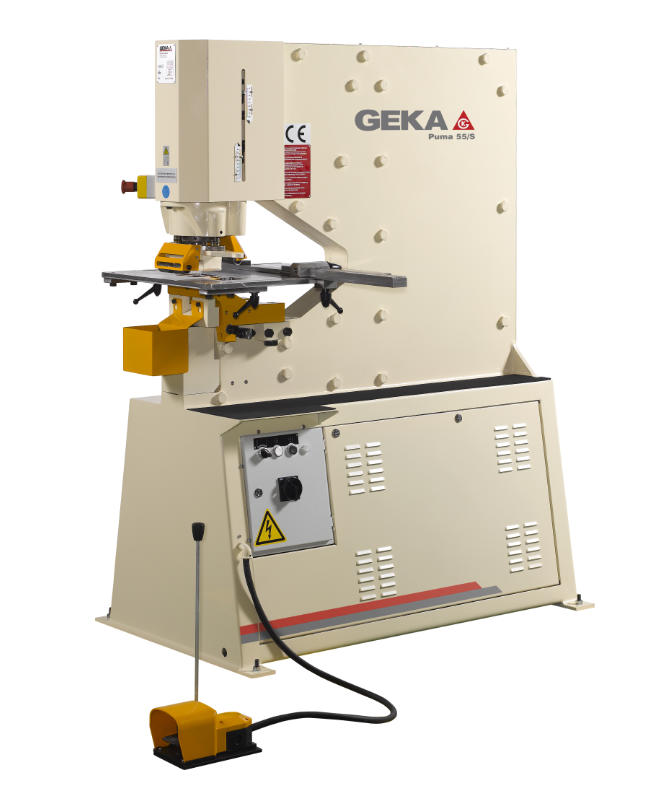

Puma 55 Hydraulic Punching Ironworker
The Geka Puma 55 is the smallest model in Geka’s Puma Series of resistant and reliable hydraulic punching machines. If your hydraulic machine requirements involve punching only, the Geka Puma series of single- end punches is an ideal option.
With a punching capacity of 60 US tons, the Puma 55 is the lightest model in the Geka Puma punching machine series while still offering the quality and resistance of a Geka ironworker. Like the rest of models in the Puma series, the Puma 55 comes in two versions: the S and SD with throat depths of 19 5/8”and 29 1⁄2”, respectively, depending on your needs.
Furthermore, the Puma 55 features a guided cylinder, a strong shaft system to avoid distortions, adjustable stroke length, full tonnage throughout the stroke, a quick-change punch holder stripper for Geka tools, safety protection and guided centering of punch, among other standard features that make the Puma series optimal for your punching needs.
Specifications for the Puma 55 punching ironworker
| HYDRAULIC PUNCHING MACHINES: | PUMA-55 | ||
| PUNCHING | |||
| Punching power | US Tons | 60 | |
| Maximum capacity | Ø | 1-1/2″ x 3/8″ | |
| Throat Depths | S | in | 19-5/8″ |
| SD | in | 29-1/2″ | |
| PUNCHING OF SECTIONS WITH GOOSENECK DIE HOLDER | |||
| I on the leg | in | 4″ to 12″ | |
| I on the web | in | 4″ to 19-5/8″ | |
| U on the leg | in | 4″ to 12″ | |
| U on the web | in | 4-3/4″ to 10-1/4″ | |
| GENERAL FEATURES | |||
| Motor power | H.P. | 7.5 | |
| Strokes per minute based on 3/4″ Travel of Punching Cylinder | 37 | ||
| Maximum stroke | in | 2-23/64″ | |
| Working height | S/SD | in | 41-3/4″ / 37-1/2″ |
| Net weight | S/SD | Lbs | 2,535 / 4,155 |
| Gross weight | S/SD | Lbs | 2,910 / 4,630 |
| Volume | S/SD | Ft3 | 128-1/8″ / 147-1/4″ |
| Dimensions with Seaworthy Packaging | S | in | 61″ x 47″ x 77″ |
| SD | in | 73″ x 47″x 71″ | |
| OPTIONAL EQUIPMENT | |||
| Oversize Diameters Punching | Ø | 4″ x 5/32″ |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
The Geka Puma 55 punching machine also allows for a number of optional or standard accessories that let the machine perform a wide range of jobs. These include:
• 4” or 6” oversize punching attachment
• Punch gauging table
• Semi-paxy X-Y positioning table system
