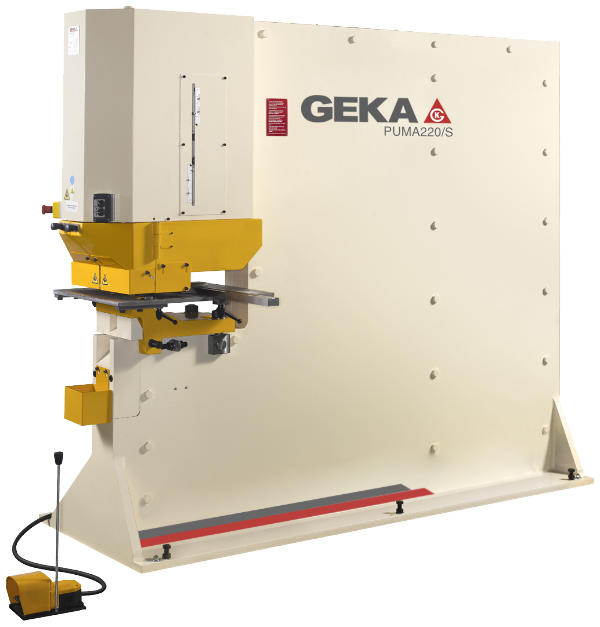

Puma 220 Hydraulic Machine for Punching
If you are looking for power in a reliable punching machine, the Geka Puma 220 will be a valuable partner in your manufacturing needs. The Puma 220 is the most powerful model in the Geka Puma Series of hydraulic punching machines, with a punching power of 220 US Tons.
The Geka Puma 220 comes in an S version with a throat depth of 20” and a weightier SD version with a throat depth of 31 1⁄2“. The standard characteristics offered by both versions include:
• A guided cylinder
• A technically dimensioned frame
• A strong and accurate shaft system to avoid distortions
• Guided punch centering
• Safety protection
• Quick change punch-holder stripper for Geka tools
• Optimum operation speed
![Puma220 Geka US Puma220 Geka US](http://gekaus.com/wp-content/uploads/2022/02/Puma220E.jpg)
Specifications for the Puma 220 ironworker
HYDRAULIC PUNCHING MACHINES: | PUMA-220 | ||
PUNCHING | |||
Punching power | US Tons | 220 | |
Maximum capacity | Ø | 1-1/2″ x 1 1/2″ | |
Throat Depths | S | in | 20″ |
SD | in | 31-1/2″ | |
PUNCHING OF SECTIONS WITH GOOSENECK DIE HOLDER | |||
I on the leg | in | 4″ to 17-3/4″ | |
I on the web | in | 4″ to 19-5/8″ | |
U on the leg | in | 4-3/4″ to 15-3/4″ | |
U on the web | in | 4-3/4″ to 15-3/4″ | |
GENERAL FEATURES | |||
Motor power | H.P. | 27 | |
Strokes per minute based on 3/4″ Travel of Punching Cylinder | 25 | ||
Maximum stroke | in | 3-15/16″ | |
Working height | S/SD | in | 39-7/8″ / 39-7/8″ |
Net weight | S/SD | Lbs | 11,465 / 12,125 |
Gross weight | S/SD | Lbs | 12,570 / 13,230 |
Volume | S/SD | Ft3 | 340″ / 353-1/8″ |
Dimensions with Seaworthy Packaging | S | in | 100″ x 63″ x 93″ |
SD | in | 105″ x 63″ x 93″ | |
OPTIONAL EQUIPMENT | |||
Oversize Diameters Punching | Ø | 4″ x 5/8″ |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Additionally, you may also use the Puma 220 with optional accessories, depending on your punching needs, including:
• 4” or 6” oversize punching attachment
• Punch gauging table
• Semi-paxy X-Y positioning table system
