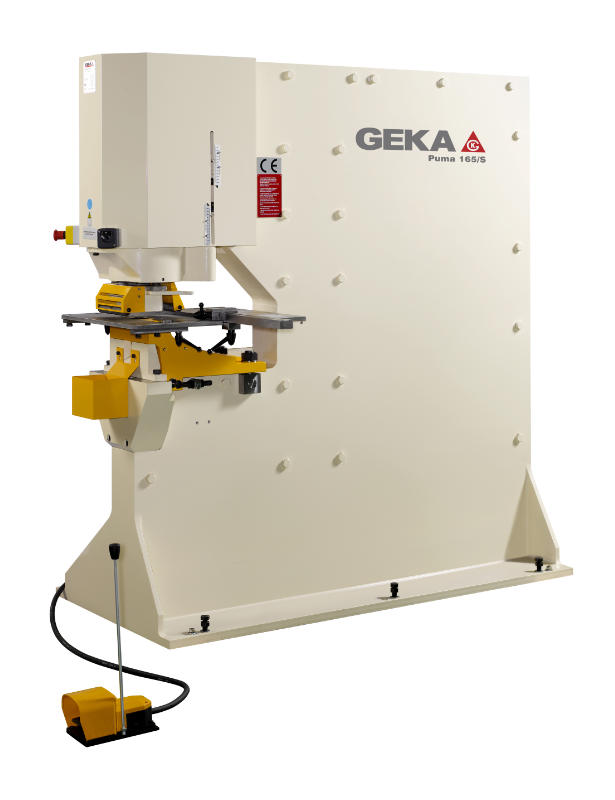

Puma 165 Punching Ironworker
With a punching power of 185 US tons, the Puma 165 is the second most powerful punching ironworker in the Geka Puma Series after the Puma 220. The Puma Series features safe and resistant hydraulic machines with the reliability that comes with Geka’s 100 years of experience in design and engineering.
Like the rest of models in the Puma series, the Puma 165 comes in an S version and an SD version. The S version has a throat depth of 20” and a weight of 9,975 lbs. while the SD version has a throat depth of 29 7/8” and weighs 9,976 lbs.
The Puma 165 comes with the following standard features
• A guided cylinder
• A technically dimensioned frame
• A strong and accurate shaft system to avoid distortions
• Guided punch centering
• Safety protection
• Quick change punch-holder stripper
• Optimum operation speed
Specifications for the Puma 165 ironworker
| HYDRAULIC PUNCHING MACHINES: | PUMA-165 | ||
| PUNCHING | |||
| Punching power | US Tons | 185 | |
| Maximum capacity | Ø | 1-1/2″ x 1 1/4″ | |
| Throat Depths | S | in | 20″ |
| SD | in | 29-7/8″ | |
| PUNCHING OF SECTIONS WITH GOOSENECK DIE HOLDER | |||
| I on the leg | in | 4″ to 17-3/4″ | |
| I on the web | in | 4″ to 19-5/8″ | |
| U on the leg | in | 4-3/4″ to 15-3/4″ | |
| U on the web | in | 4-3/4″ to 15-3/4″ | |
| GENERAL FEATURES | |||
| Motor power | H.P. | 27 | |
| Strokes per minute based on 3/4″ Travel of Punching Cylinder | 28 | ||
| Maximum stroke | in | 3-15/16″ | |
| Working height | S/SD | in | 41-3/4″ / 41-3/4″ |
| Net weight | S/SD | Lbs | 9,460 / 9,975 |
| Gross weight | S/SD | Lbs | 10,365 / 11,025 |
| Volume | S/SD | Ft3 | 258-1/8″ / 316 |
| Dimensions with Seaworthy Packaging | S | in | 80″ x 63″ x 128″ |
| SD | in | 80″ x 63″ x 128″ | |
| OPTIONAL EQUIPMENT | |||
| Oversize Diameters Punching | Ø | 4″ x 1/2″ |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Optional accessories are also available for the Puma 165 in order to adapt the machine to your specific punching needs. These include:
• 4” or 6” oversize punching attachment
• Punch gauging table
• Semi-paxy X-Y positioning table system
