Multicrop Hydraulic Ironworker

Hydraulic ironworker machine with a specialized use in cutting angles at 45º

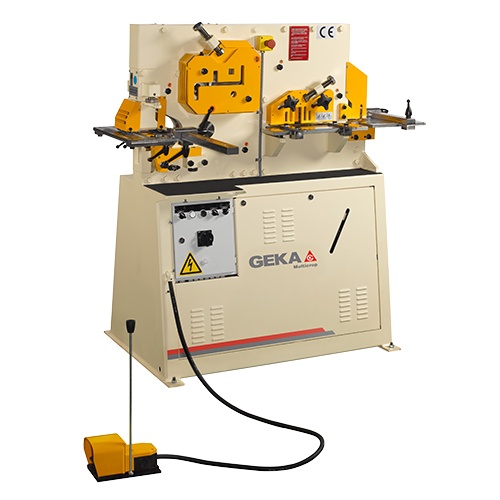

The Geka Multicrop metal working machine is the most versatile out of the three models of Geka single-cylinder hydraulic ironworkers. It offers all the features as the Minicrop model but with the addition of a special station for cutting angles at 45º, on angular profiles leg in and leg out. Its punching power is of 50 US tons.

The Geka Multicrop metal working machine can also be acquired in a 220V Single Phase version. Geka optional peripherals and tools are also available to be mounted on the machine for performing a wide range of ironworking tasks.

REQUEST MORE DETAILS ABOUT THE MULTICROP IRONWORKER

Features and specifications of the Geka Multicrop Metal Working Machine

FEATURESMULTICROP
Punching Power50 US Tons
PunchingØ 1-1/16″ x 1/2“
Shear for flat bars 10″ x 3/8“
8″ x 1/2“
Shears for section iron L at 90º 3″ x 3″ x 5/16“
Shears for section iron L at 45º2-1/4″ x 2-1/4″ x 1/4“
Notching 2″x 1-1/2″x1/4“
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

Multicrop Hydraulic Machine Main Features

Standard blades for cutting angles
Cutting of round and square bars

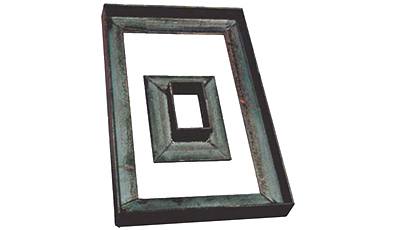

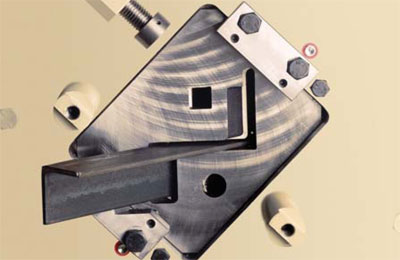

Cutting angled sections at 45° on both inside and outside facing legs (the only Geka single-cylinder model with this capability)

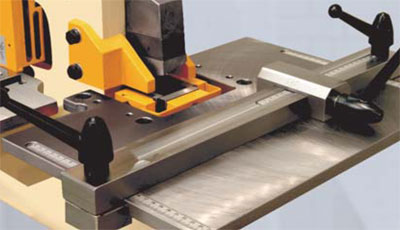

Rectangular notching station with precision machined worktable and scaled stops

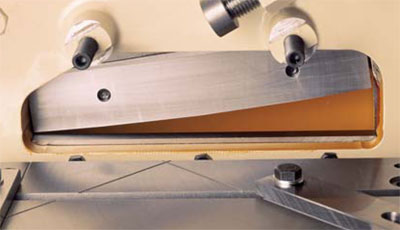

Flat bar shearing stations with a graduated table marked with degrees and two guide bars. The shearing blades have a unique radial geometry that minimizes the deformation of material.
The machine may also be equipped with optional peripherals, depending on your manufacturing needs.
ASK FOR MORE INFORMATION ABOUT THE OPTIONAL EQUIPMENT AVAILABLE FROM GEKA FOR THE MULTICROP MODEL

One Cylinder Ironworkers main features.

Max Punching ØFlat Bars ShearingBars ShearingAngle cut 45ºAngle cut 90ºNotching
Microcrop1 1/16” x 3/8”13 3/4” x 1/4”
8” x 1/2”		13¾» x ¼»
8” x 1/2”		–3” x 3” x 5/16”–
Minicrop1 1/16” x 1/2”10” x 3/8”
8” x 1/2”		10″x3/8«
8” x 1/2”		–3” x 3” x 5/16”2″x1½»x¼»
Multicrop1-1/16″ x 3/8″10” x 3/8”
8” x 1/2”		10″x3/8«
8” x 1/2”		2 1/4” x 2 1/4” x 1/4”3” x 3” x 5/16”2″x1½»x¼»
CONFIGURATIONMICROCROPMINICROPMULTICROP
L  90ºYESYESYES
L  45º2 legs1 legs2 legs
Flat bar
YESYESYES
PunchingYESYESYES
NotchingOptional for punching stationYESYES
BendingOptional for punching stationOptional for punching stationOptional for punching station
Electric StopPre InstallationPre InstallationPre Installation
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.
