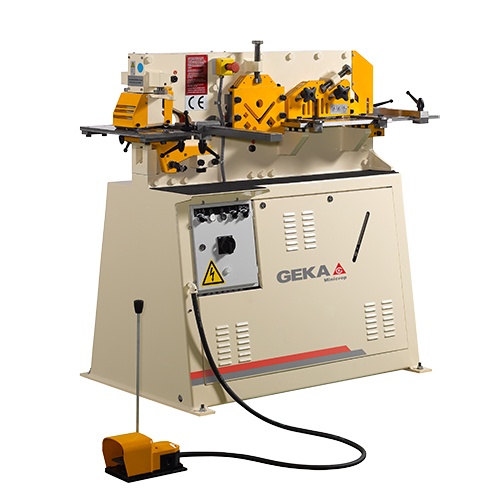

Minicrop Hydraulic Ironworker
The Geka Minicrop metal working machine is one of three Geka hydraulic ironworker models featuring a single cylinder. It includes all the same features as the Microcrop model.
Additionally, the Minicrop metal working machine also includes a wide range of openings for cutting round and square bars and a gooseneck die-holder for punching profiles and legs and webs. The Geka Minicrop, for sale at any of our distributors and dealers, may also be fitted with a wide range of tools and accessories for notching and punching.
Features and specifications of the Geka Minicrop single-cylinder ironworker
Features and specifications of the Geka Minicrop single-cylinder ironworker

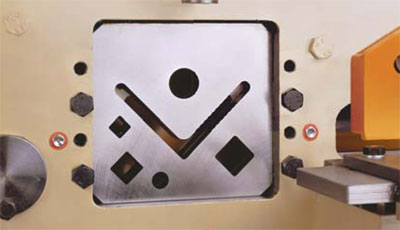

- L cutting system at 90º without deformation. Wide range of openings for round and squared-cut without deformation.
- Goose neck die-holder for punching of D and E sections in legs and web for U and I profiles.
- Blade for flat bar with unique radial geometry for shearing with minimum deformation.
- Rectangular notching equipment with precision machined worktable and scaled stops.
- Optional Blades for shearing D and E section up to 4″ with distortion.
- Possibility of mounting a wide range of optional equipment for notching and punching.
- This model can be offered in 220V Single Phase version.
| FEATURES | MINICROP |
| Punching Power | 50 US Tons |
| Punching | Ø1-1/16″x1/2″ |
| Shears for section iron L at 90º | 3″ x 3″x 5/16″ |
| Cutting of Flat Bars | 10″x3/8″ & 8″x1/2″ |
| Notching | 2″x1 1/2″x1/4″ |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Main Features of the Geka Minicrop Ironworker
One Cylinder Ironworkers main features.
 |  |  |  |  |  | |
| Max Punching Ø | Flat Bars Shearing | Bars Shearing | Angle cut 45º | Angle cut 90º | Notching | |
| Microcrop | 1 1/16” x 3/8” | 13 3/4” x 1/4” 8” x 1/2” | 13¾» x ¼» 8” x 1/2” | – | 3” x 3” x 5/16” | – |
| Minicrop | 1 1/16” x 1/2” | 10” x 3/8” 8” x 1/2” | 10″x3/8« 8” x 1/2” | – | 3” x 3” x 5/16” | 2″x1½»x¼» |
| Multicrop | 1-1/16″ x 3/8″ | 10” x 3/8” 8” x 1/2” | 10″x3/8« 8” x 1/2” | 2 1/4” x 2 1/4” x 1/4” | 3” x 3” x 5/16” | 2″x1½»x¼» |
| CONFIGURATION | MICROCROP | MINICROP | MULTICROP |
| L 90º | YES | YES | YES |
| L 45º | 2 legs | 1 legs | 2 legs |
| Flat bar | YES | YES | YES |
| Punching | YES | YES | YES |
| Notching | Optional for punching station | YES | YES |
| Bending | Optional for punching station | Optional for punching station | Optional for punching station |
| Electric Stop | Pre Installation | Pre Installation | Pre Installation |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
