Geka Hydracrop Series of two-cylinder ironworkers
Any ironworker machine in the Hydracrop Series may be utilized by two operators at the same time. These machines feature five tonnage levels and five workstations for punching, notching, flat bar shearing, angle cutting and round and square bar shearing.
Each model comes in two versions: an S version and an SD version with a deeper throat for larger plate and sheet metal applications.
Optional equipment and punching profiles may also be used with the Hydracrop machines. Our technical support service can help you choose the most adequate accessories to suit your needs.

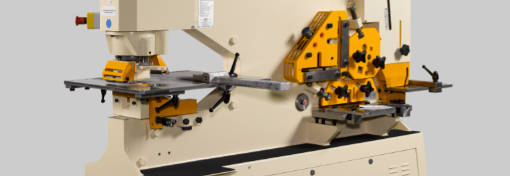

Geka Hydracrop 55/110
This hydraulic ironworker machine has a punch cylinder with a punching power of 60 US tons and also offers a shearing power of 110 US tons.

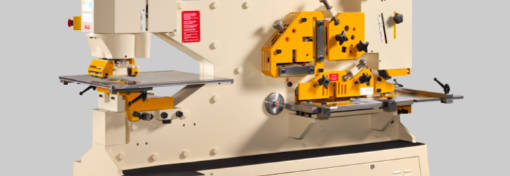

Geka Hydracrop 80/150
Hydraulic ironworker featuring a punch cylinder with a punching power of 88 US tons and a shearing station capable of shearing angles at 90° with a shearing power of 150 US tons.

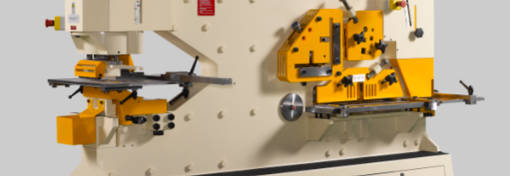

Geka Hydracrop 110/180
This Hydracrop model has the capability of punching with a punching power of 120 US tons and of shearing 90° angles with a shearing power of 180 US tons.

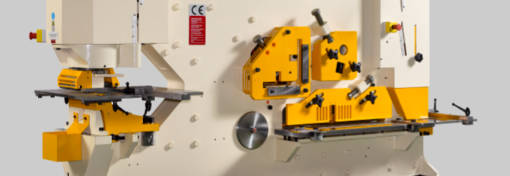

Geka Hydracrop 165/300
Among its five work stations, this ironworker includes a punching station capable of making punching operations with a punching power of 185 US tons and a shearing station that can shear angles at 90° with a shearing power of 300 US tons.

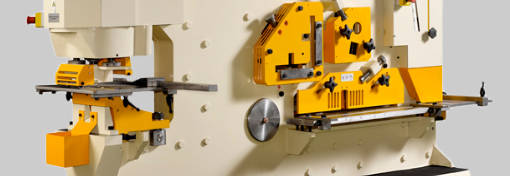

Geka Hydracrop 220/300
With a punch cylinder with a power of 240 US tons, the Hydracrop 220/300 offers the most punching power in the series. The machine’s shearing station is able to shear angles at 90° with a shearing power of 300 US tons.
Hydracrop main features:
 |  |  |  |  |  | |
| Max Punching Ø | Flat Bars Shearing | Bars Shearing | Angle cut 45º | Angle cut 90º | Notching | |
| Hydracrop 55 | 1-1/2″ x 3/8″ | 12″ x 5/8″ 8″ x ¾» | 1 5/8« | 2 3/4«x2 3/4«x1/4 | 4 3/4«x4 3/4«x 3/8« | 3/8» thickness |
| Hydracrop 80 | 1 1/16” x 1/2” | 18″ x 5/8″ 12″ x ¾» | 1 3/4« | 2 3/4«x2 3/4«x1/4 | 5 1/8«x 5 1/8» x 1/2« | 1/2″ thickness |
| Hydracrop 110 | 1 1/16” x 1/2” | 24″ x 5/8″ 16″ x ¾» | 2″ | 2 3/4«x2 3/4«x1/4 | 6″x 6″ x 1/2« | 1/2″ thickness |
| Hydracrop 165 | 1 1/2” x 1/2” | 30″ x ¾» 16″ x 11/8 | 2 3/8« | 2 3/4«x2 3/4«x1/4 | 8″x 8″ x 3/4« | 5/8″ thickness |
| Hydracrop 220 | 11/2”x11/2” | 30″ x ¾» 16″ x 11/8 | 2 3/8« | 2 3/4«x2 3/4«x1/4 | 8″x 8″ x 3/4« | 5/8″ thickness |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
CNC Feeders and Positioners for GEKA Ironworkers and Punching Machines
Our hydraulic ironworkers and punching machines may be fitted with our own CNC feeders and positioners. These help increase the productivity and cost-efficiency of your manufacturing process by automatizing the positioning of plates and profiles in the punching and shearing stations of Geka metalworking machines.
Geka Services for your Hydracrop Ironworkers
You may contact our Geka support service at any time. Choose from one of the services below so that we may help you in the most appropriate manner.
Sales Consultant
You can contact our sales consultants with any doubts regarding any Geka machine or accessory you are considering acquiring.
Brochure Request
We have brochures available for all of our products, including all the relevant information and specifications.
Technical Support
We have a team of qualified Geka engineers at your disposal for technical support. They will help you with any technical issues you might be experiencing with our machines or they can help you customize your ironworker with tailor-made replacement parts or accessories.
Manuals Request
Geka has manuals available upon request for all of our original machines and tools.
