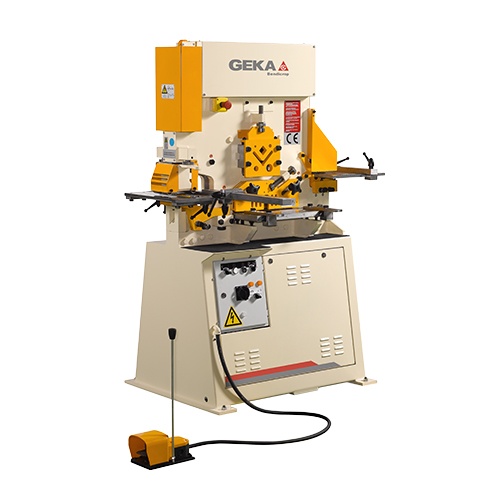

Bendicrop 50 Ironworker Machine

Bendicrop 50 hydraulic ironworker for sale from Geka, featuring a built-in bending station

The Bendicrop 50, part of Geka’s Bendicrop Series of hydraulic ironworking machines, features a single cylinder and six workstations. The six workstations include a built-in bending station that makes the Bendicrop machines unique in the market.

REQUEST MORE INFORMATION ABOUT THE BENDICROP 50 IRONWORKER MACHINE, FOR SALE FROM GEKA

BENDICROP 50 FEATURES AND SPECIFICATIONS

FEATURES	BENDICROP 50
Punching Power	55 US Tons
Punching	Ø 1-1/16” x 1/2″
Shearing flat bars	14 x 3/8″@ 2º 14 x 1/2″@4º
Shear of angle section L at 90	3” x 3” x 5/16
Bending	4” x 3/8” with 2 “V” dies of 1-5/8” and 2-3/4” Openings
Rectangular Notching	Thickness 3/8” Width of Notcher 1-9/16” Depth of Cut 3/8”
Round and Square Bar Shearing	Ø1-3/8” Ø 1-3/16” Square

The manufacturer reserves the right to make modifications without prior notice.
All capacities based on a material resistance of 65,000 tensile.
Throat depth of punch is 6-7/8”.
Can also accept cutting of U profiles up to 3” x 4.1lb and other shapes of profiles in the Section
Shearing. Ask of more details on the sizes you may need to shear.
Also, the ability to install a Pipe/Tube Notcher, Triangular Notcher, or even a second Punching
Station place of the Rectangular Notcher.
Furthermore, it is fitted with a system to reduce deformation (twisting) when Shearing Fat Bars.
The manufacturer reserves the right to make modifications without prior notice.
All capacities based on a material resistance of 65,000 tensile.

Thanks to the blade holder’s vertical movement, the machine has the machine performs excellently in its six workstations:

Punching station
Notching station
Flat bar shearing station
Angle cutting station
Round and square bar shearing station
Integrated bending station

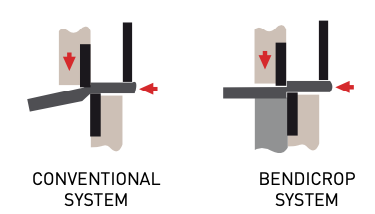

The machine also comes equipped with Geka’s anti-torsion system, which reduces deformation when shearing flat bars.

Bendicrop Hydraulic Ironworker main features

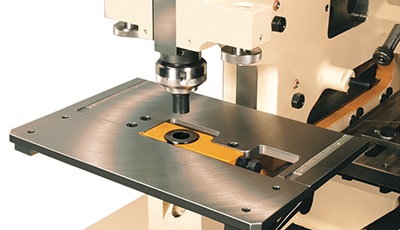

Goose neck die-holder for punching different profile sections on legs and webs. It also allows for the quick changing of punches and dies, with the die holder being easily adjusted in order to align tools. The punching table comes complete with scales.

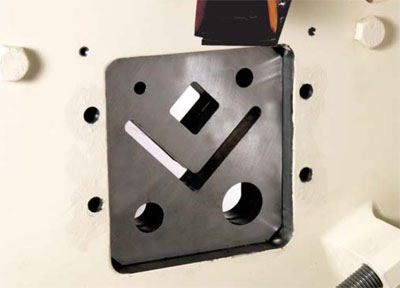

Angle shearing for round and square bars, without any loss of material.

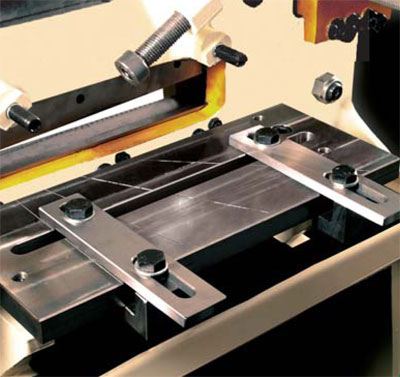

Shearing system for flat bars and plates with minimum deformation and a very sturdy table marked out with degrees for an easy setup of non-square cuts. Two material guides are also included.

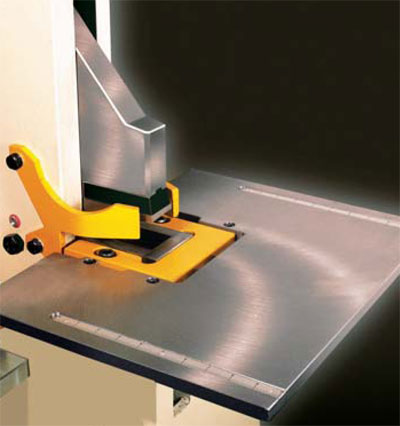

Rectangular notching including a gauge table with scales. This station is also suitable for Pipe and Tube Notching, Rectangular Notching, Secondary Punching Station or for special shape Notching.

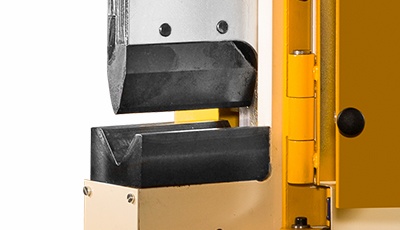

The permanent bending station is compliant with CE standards with a moving speed of 3/8” per second and a foot pedal that stops movement when pushed too hard. The lower die is held in place in a pocket and is easily removed. The station has Standard Die V openings of 2” and 3-3/8”. It also allows for a micrometer fine adjustment of the depth stroke to improve repeatability.

Bendicrop main features:


	Max Punching Ø	Flat Bars Shearing	Angle cut 90º	Notching	Bending
Bendicrop 50	1 1/4 x 1/2” 1 1/16 x 1/2”	14” x 9/16” (5º) 14” x 1/2”	3” x 3” x 5/16”	Rectangular 4″ x 3/8”	4” x 3/8”
Bendicrop 60	1 1/2” x 7⁄16”	14” x 9/16” (5º) 14” x 1/2”	4” x 4” x 1/2”	Triangular 4″ x 3/8”	6” x 3/8”
Bendicrop 85	1 1/2” x 1/2”	18” x 5/8” (5º) 18” x 3/4”	4” x 4” x 1/2”	Triangular 5″ x 1/2”	8” x 1/2”

Capacities based on a material resistance of 65,000 tensile.
The manufacturer reserves the right to make modifications without prior notice.

CNC Feeders and Positioners for GEKA Ironworkers and Punching Machines

Our CNC Positioners and Feeders will improve the productivity and efficiency of your Geka ironworkers by automatically positioning plates and profiles in their shearing or punching stations.
