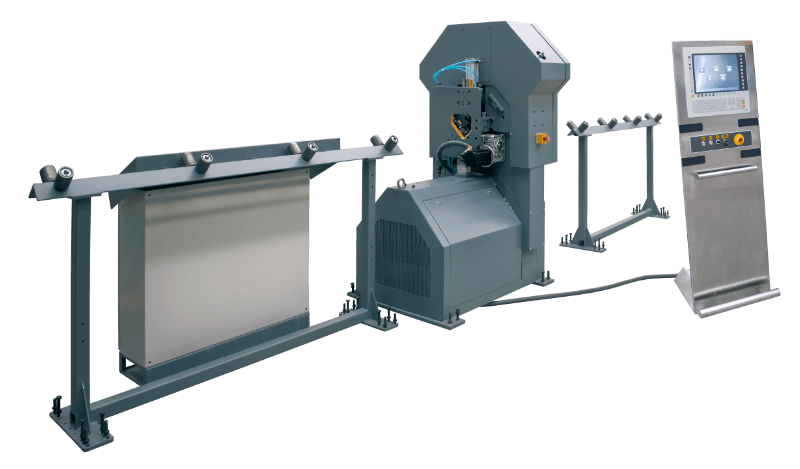

Gamma Roller 80 / C2PL80, completely automated CNC solution for Angle Punching and Shearing
The Gamma Roller 80 / C2PL is a CNC solution for automatic angle punching and angle shearing in Geka’s Gamma Series. This CNC line automatically processes angles, including cutting and punching on both sides, of materials from 1/8″ to 3/8″ in thickness. The angle is moved by means of a traction wheel with servomotor.
Several optional peripherals are also available from Geka for the Gamma Roller 80 / C2PL, including an automatic side loader and exit conveyors, which means you can configure the ironworker machine to suit your specific manufacturing needs with the help of our technical support service.
![geka-usa-cnc-line-angle-processing-system-gamma-roller-c2pl-80 geka-usa-cnc-line-angle-processing-system-gamma-roller-c2pl-80](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-line-angle-processing-system-gamma-roller-c2pl-80.png)
- Automatic Side Loader.
- Exit Conveyors.
- Line Pro Advanced with Nesting and DSTV importing.
Features and specifications of the Gamma Roller 80 / C2PL Ironworker Machine
Features | Gamma Roller 80 / C2PL |
---|---|
Minimum L | 1-1/2 x 1-1/2 x 1/8″ |
Maximum L | 3 x 3 x 3/8″ |
Nº Punches | 2 (1/wing) |
Maximum Diameter | 1″ |
Punching Force | 38 US Tons |
Shear station tonnage | 73 US Tons |
X Axis Speed | up to 1,481″/min |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.

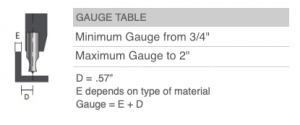

Video of Gamma Roller 80 C2PL CNC Solution:
![geka-usa-cnc-line-angle-gamma-roller-80-gauge-table geka-usa-cnc-line-angle-gamma-roller-80-gauge-table](http://gekaus.com/wp-content/uploads/2020/07/geka-usa-cnc-line-angle-gamma-roller-80-gauge-table-300x125.png)
Main Features of the Gamma Roller 80 / C2PL
![geka-usa-cnc-line-angle-gamma-roller-80-power-unit geka-usa-cnc-line-angle-gamma-roller-80-power-unit](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-line-angle-gamma-roller-80-power-unit.jpg)

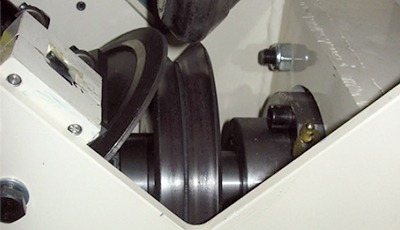

INPUT CONVEYOR UNIT.
Servo motor-driven tracking roller. Independent encoder.![geka-usa-cnc-line-angle-gamma-roller-80-punching-unit-2 geka-usa-cnc-line-angle-gamma-roller-80-punching-unit-2](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-line-angle-gamma-roller-80-punching-unit-2.jpg)
PUNCHING UNIT.
One punch per wing. Adjustable gauges. Hydraulic hold-down device.![geka-usa-cnc-line-angle-gamma-roller-80-cutting-unit-2 geka-usa-cnc-line-angle-gamma-roller-80-cutting-unit-2](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-line-angle-gamma-roller-80-cutting-unit-2.jpg)

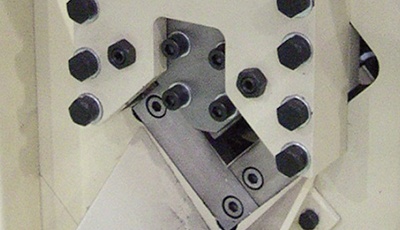

SHEARING UNIT.
Performs clean cuts without wasting material. Blades are quickly and easily accessible.![](http://gekaus.com/wp-content/uploads/2020/06/geka-usa-cnc-pc-control.jpg)

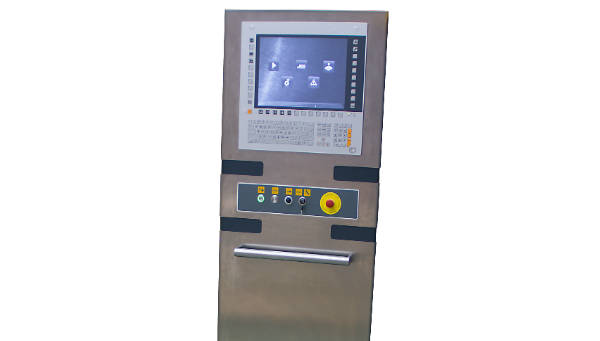

USER-INTERFACE.
Touch Screen. Windows based PC control. Remote assistance over the internet. USB Port.![](http://gekaus.com/wp-content/uploads/2020/02/services-geka-group-usa-01.png)
