CNC solution for Punching, Marking, Drilling and Shearing large volumes of Angles and Flat Bars
The Gamma Roller 150-2P-DPS is one of the models available in Geka’s Gamma Series of CNC Lines for punching, shearing, marking, and drilling angles automatically. It features a punching unit of up to four punches (two punches per wing) and an angle drill bit. Geka also offers a wide range of optional peripheral equipment that allows customers to configure the Gamma Roller 150-2P-DPS to their specific manufacturing needs.
Some of the benefits of using an automated CNC line is that it speeds up your manufacturing workflow and that they can perform a large variety of processing functions. The Gamma Roller 150-2P-DPS follows the highest standards of precision and complies with all the EC regulations.
- Automatic Feeder.
- Minimal Waste Unit.
- Marking Unit.
- Material Unloading System.
- Advanced Software with Nesting and Importing DSTV.
| Features | Gamma Roller 150-2P-DPS |
|---|---|
| Minimum L | 1-1/2″ x 1-1/2″ x 3/16″ |
| Maximum L | 6″ x 6″ x 1/2″ |
| Marking | Disc |
| Characters | 40 |
| Nº Punches | 4 (2/wing) |
| Maximum Diameter | 1-1/4″ |
| Punching Force | 67 US Tons |
| Shear station tonnage | 213 US Tons |
| Feeder Speed | Programmable Up to 1,417 Ft/min |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
Video of Gamma Roller 150 2P CNC Solution:
Features of the Gamma Roller 150-2P-DPS CNC Line
PULL TYPE FEEDING.
Servo motor driven tracking unit with independent encoder units at both ends of the machine.

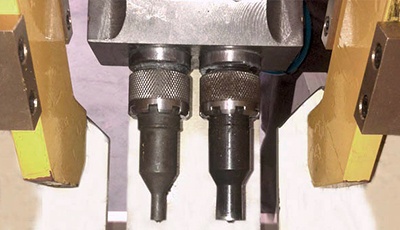

PUNCHING UNIT.
Two punches per wing. Diameters up to 1-1/4″. Hydraulic hold-down. CNC-controlled gauge.

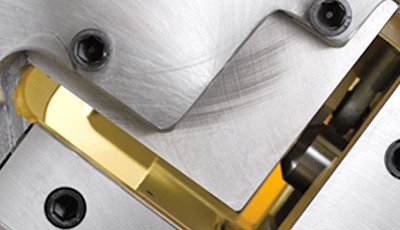

SHEARING UNIT.
Clean cuts without waste. Easy and quick access to blades.
USER-INTERFACE.
PC on Windows 10 platform. Network Connectivity. USB ports. Graphic interfaces. Remote Assistance via internet.Services for your GR 150 2P CNC Line for Angles.
