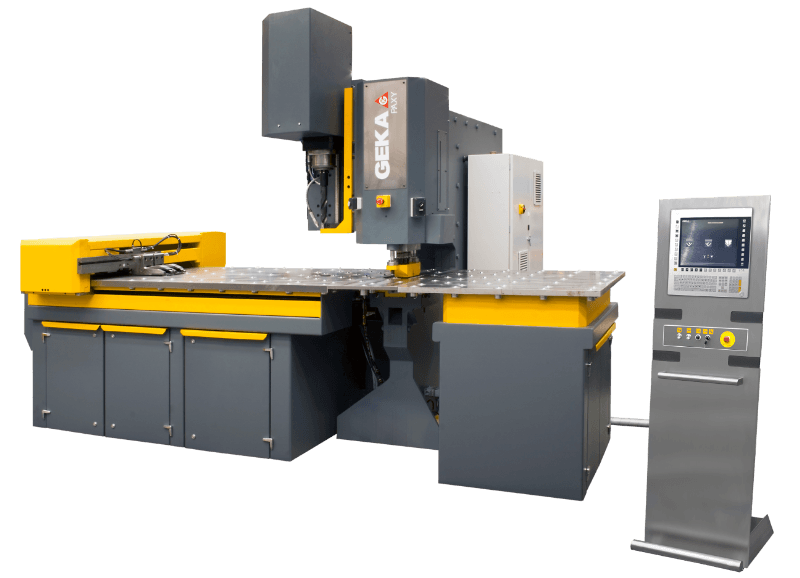

Paxy 1000 CNC Drilling Solution for marking steel plates

The Paxy 1000 is the lightest model in the Paxy Series of CNC solutions for punching, marking and drilling steel plates. It is an automated machine for the punching of steel plates, automating time-consuming preliminary jobs like manual positioning and center marking. The Paxy Series of CNC solutions will help you in your manufacturing process by maximizing productivity, reducing costs and increasing accuracy. The Paxy 1000 is made for punching steel plates of up to 1 9/16” in thickness, with a maximum length of 40” and a maximum width of 19 1/2”.
The Paxy 1000 punching solution is also surprisingly easy to use: its touch-screen user interface has been programmed to be intuitive and easy to start using. The machine also has an automatic feeder with a set of independent serve drives along each axis that drastically simplifies the process of loading and unloading material. The punching unit is equipped with a hydraulic hold-down and offers the reliability of Geka’s 100 years of experience in punching design and engineering.

Paxy 1000 Specifications

Max. Length40″
Max. Width20″
Max. Thickness1-9/16″
Max. Diameter1-9/16″
Nº PunchesUp to 3
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.
In addition to their standard features, the Paxy Series CNC solutions may also be equipped with additional peripheral accessories depending on your manufacturing requirements. Geka has the following peripherals available for the Paxy 1000 punching solution: • A triple-punching head with a maximum diameter of 1 9/16” and with three different variable punches • A marking unit that can accommodate up to 10 digits with a 10 x 6mm-size typeface • A vertical drilling unit with a cutting speed of 65 ft/min
